energyApp EPICS application¶

energy is an EPICS application including:

A database file and corresponding autosave request file that contain the PVs required by the energy.py base class.
OPI screens for medm
An example IOC application that can be used to run the above databases. The databases are loaded in the IOC with the example substitutions file, energy.substitutions.

Base class files¶

The following tables list all of the records in the energy.template file. These records are used by the energy base class and so are required.

energy.template¶

This is the database file that contains only the PVs required by the energy.py base class energy.template.

Energy status via Channel Access¶

Record name	Record type	Description
$(P)$(R)EnergyStatus	waveform	This record will be updated with the scan status while scanning.
$(P)$(R)ServerRunning	bi	This record will be `Running` if the Python server is running and `Stopped` if not. It is controlled by a watchdog timer, and will change from `Running` to `Stopped` within 5 seconds if the Python server exits.

Energy information¶

Record name	Record type	Description
$(P)$(R)Energy	ao	Contains the energy value in keV
$(P)$(R)EnergyMode	mbbo	Contains the energy mode, options are Pink, Mono and White

Energy change¶

Record name	Record type	Description
$(P)$(R)EnergyInRange	bo	True when the energy selected is within pre-calibrated min-max energies
$(P)$(R)EnergyCalibrationUse	mbbo	set to select use of Pre-set or interpolation
$(P)$(R)EnergyMove	busy	when set to 1 starts the energy move
$(P)$(R)EnergyTesting	bo	when set beamline component move is disabled
$(P)$(R)EnergyBusy	busy	when set to 1 the beamline is busy with the energy move

Shutter control¶

Record name	Record type	Description
$(P)$(R)CloseShutterPVName	stringout	Contains the name of the PV to close the shutter
$(P)$(R)CloseShutterValue	stringout	Contains the value to write to close the shutter
$(P)$(R)OpenShutterPVName	stringout	Contains the name of the PV to open the shutter
$(P)$(R)OpenShutterValue	stringout	Contains the value to write to open the shutter

Shutter status¶

Record name	Record type	Description
$(P)$(R)ShutterStatusPVName	stringout	Contains the name of the PV with the shutter status

Energy Move PV Names¶

Record name	Record type	Description
$(P)$(R)EnergyMove0PVName	stringout	Contains the name of the PV that will move in an energy change, both to a pre-selected and to an interpolated position
$(P)$(R)EnergyMove0PVDesc	stringout	It is used to store the PV description. If available this will be derived from the EnergyMove0PVName description if not it will be created using the EnergyMove0PVName itself. These PVs will be used as key entry in the dictionary storing the pre-calibrated position for each motor.

Energy Pos PV Names¶

Record name	Record type	Description
$(P)$(R)EnergyPos0PVName	stringout	Contains the name of the PV that will move in an energy change to a pre-selected position. This motors will not move to an interpolated position.
$(P)$(R)EnergyPos0PVDesc	stringout	It is used to store the PV description. If available this will be derived from the EnergyMove0PVName description if not it will be created using the EnergyMove0PVName itself. These PVs will be used as key entry in the dictionary storing the pre-calibrated position for each motor.

Sync PV Names¶

Record name	Record type	Description
$(P)$(R)Sync0PVName	stringout	Contains the name of the sync to motor PV that will be set to 1 at the end of an energy change.

Store PV Names¶

Record name	Record type	Description
$(P)$(R)Store0PVName	stringout	Contains the name of PVs that will store in the energy json for logging purposes, e.g. S:IOC:timeOfDayISO8601.

Beamline-specific files¶

The following files are for the beamline-specific derived classes.

Beamline 2-BM¶

These are the files that are specific to the Energy2BM derived class used at APS beamline 2-BM.

energy_2BM.template¶

This is database file for the Energy2BM derived class energy_2BM.template.

The following tables list all of the records in the energy_2BM.template file. This file is used for records needed by the energy_2bm derived class, and also for metadata PVs that should be saved in the energy configuration file.

Energy information¶

Record name	Record type	Description
$(P)$(R)Filters	stringout	Contains the list of filters (material and thickness) added manually

Energy change¶

Record name	Record type	Description
$(P)$(R))EnergyChoice	mbbo	Contains the pre-calibrated energy values in keV in the format mode value, i.e. Mono 20.00

Beamline 32-ID¶

These are the files that are specific to the Energy32ID derived class used at APS beamline 32-ID.

energy_32ID.template¶

This is database file for the Energy32ID derived class energy_32ID.template.

The following tables list all of the records in the energy_32ID.template file. This file is used for records needed by the energy_32id derived class, and also for metadata PVs that should be saved in the energy configuration file.

Energy change¶

Record name	Record type	Description
$(P)$(R))EnergyChoice	mbbo	Contains the pre-calibrated energy values in keV in the format mode value, i.e. Mono 20.00

GUI¶

The following are MEDM screens to interact with the energy EPICS IOC:

_images/energy_01.png — User control screen¶

_images/energy_02.png — Admin control screen¶

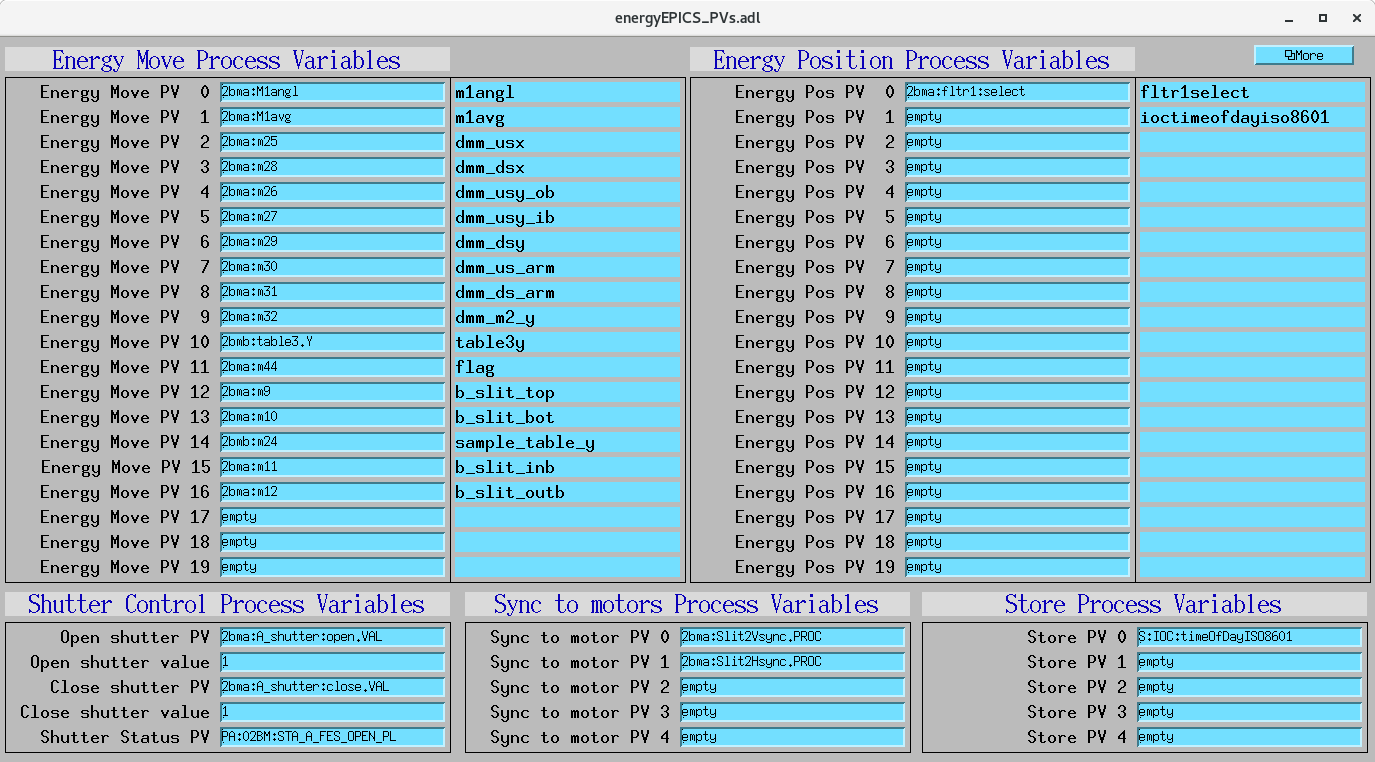

_images/energy_03.png — Setup configuration screen¶

Warning

If the above PVs are changed energy python server must be restarted.
